Drone Parachute for DJI M300 RTK (MOC 2511)

Name: Drone Parachute for DJI M300 RTK (MOC 2511)
Brand: AVSS
Availability: InStock

Compatible with Downward and Upward Gimbals. Rugged GPC Protective Case Included.

About the Drone Parachute Recovery System

Overview

The ASTM F3322-18 compliant PRS-M300EX has been designed to easily integrate with the DJI Matrice 300 RTK. The PRS-M300EX complies with EASA’s M2 Mitigation (MOC 2512) and Enhanced Containment (MOC 2511). The attachment bracket secures the parachute recovery system without interfering with sensitive GPS modules and ensures take-off with various payload combinations. The system includes an electronic module to power the Parachute Pod™ and flight termination system. The onboard system comes equipped with an automatic triggering device to deploy the drone parachute. An independent remote for manually deploying the drone parachute gives you constant control over your operations.

Key Features

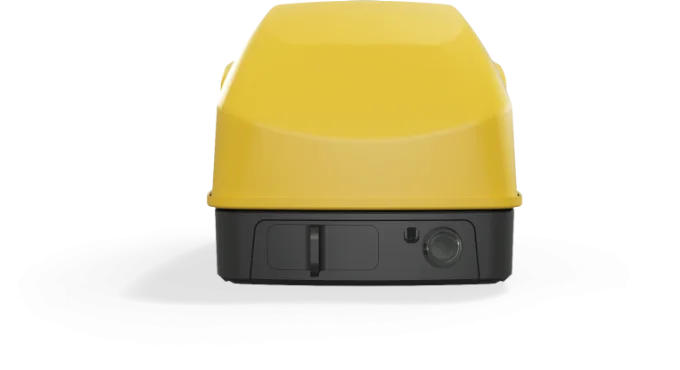

Field replaceable Parachute Pods™
External FTS for Light-UAS 2511 (MOC 2511)
Plug-and-play flight termination system with an option of 0 meter/feet deployment
Less than 0.5-second automatic deployment
Greater than 2km/1.2mi manual deployment range
ASTM F3322, MOC 2511, MOC 2512, and third party documentation that is relevant to Civil Aviation Authorities

Complete Set Includes

One Parachute Pod™
Rugged GPC protective case
Electronic module
Flight termination system – External
Flight termination system – OSDK
Autonomous triggering System
Attachment bracket
Manual triggering device
Electronic module batteries
One (1) year, three (3) deployment warranty
CAA, ASTM F3322, EASA MOC 2511, EASA MOC 2512 documentation

Pricing is in USD

Performance Overview

Total weight: 1120 grams / 2.47 lbs
Average descent rate (7.70 kg): 3.24 mps / 10.62 fps
Average descent rate (9.20 kg): 3.54 mps / 11.61 fps
Average impact energy (7.70 kg): 40.30 J / 29.80 ft-lb
Average impact energy (9.20 kg): 57.60 J / 42.50 ft-lb
Minimum deployment altitude (7.70 kg): 44.60 m / 146.33 ft
Minimum deployment altitude (9.20 kg): 50.80 m / 166.67 ft

Note: Depending on the Civil Aviation Authority data collection and analysis requirements, performance metrics may require different calculation methods.

Technical Specifications
