Drone Parachute for DJI M350 RTK (EASA C5 & MOC 2511)

Name: Drone Parachute for DJI M350 RTK (EASA C5 & MOC 2511)
Brand: AVSS
Availability: InStock

Compatible with Downward and Upward Gimbals. Rugged GPC Protective Case Included.

About the Drone Parachute Recovery System

Overview

The ASTM F3322-18 compliant PRS-M350EX has been designed to easily integrate with the DJI Matrice 350 RTK. The PRS-M350EX is a C5 kit that complies with EASA’s M2 Mitigation (MOC 2512) and Enhanced Containment (MOC 2511). The attachment bracket secures the parachute recovery system without interfering with sensitive GPS modules and ensures take-off with various payload combinations. The system includes an electronic module to power the Parachute Pod™ and flight termination system. The onboard system comes equipped with an automatic triggering device to deploy the drone parachute. An independent remote for manually deploying the drone parachute gives you constant control over your operations.

Key Features

Field replaceable Parachute Pods™
External FTS for Light-UAS 2511 (MOC 2511)
Plug-and-play flight termination system with an option of 0 meter/feet deployment
Less than 0.5-second automatic deployment
Greater than 2km/1.2mi manual deployment range
ASTM F3322, EASA MOC 2511, EASA MOC 2512, EASA c5, and third party documentation that is relevant to Civil Aviation Authorities

Complete Set Includes

One Parachute Pod™
Rugged GPC protective case
Electronic module
Flight termination system – External/Independent (EASA MOC 2511)
Flight termination system – PSDK
Autonomous triggering System
Attachment bracket
Manual triggering device
Electronic module batteries
One (1) year, three (3) deployment warranty
CAA, ASTM F3322, EASA MOC 2511, EASA MOC 2512 documentation

Pricing is in USD

Performance Overview

Total weight: 1120 grams / 2.47 lbs
Average descent rate (7.70 kg): 3.24 mps / 10.62 fps
Average descent rate (9.20 kg): 3.54 mps / 11.61 fps
Average impact energy (7.70 kg): 40.30 J / 29.80 ft-lb
Average impact energy (9.20 kg): 57.60 J / 42.50 ft-lb
Minimum deployment altitude (7.70 kg): 44.60 m / 146.33 ft
Minimum deployment altitude (9.20 kg): 50.80 m / 166.67 ft

Note: Depending on the Civil Aviation Authority data collection and analysis requirements, performance metrics may require different calculation methods.

Technical Specifications

System Overview

Total weight: 1120 grams / 2.47 lbs
Drone Parachute reuse method: Prepacked pods
Deployment technology: Spring
Deployment trigger: Manual and/or autonomous
Flight termination system: Yes
Independent remote: Yes
Warranty: 1 year; 3 deployments

System Features

Main system weight: 650 grams / 1.43 lbs
Deployment speed: 20ms
Deployment full inflation: 0.57s to 1.30s
Battery life: 6 hours
Operating temperature: -20C° to +50C°

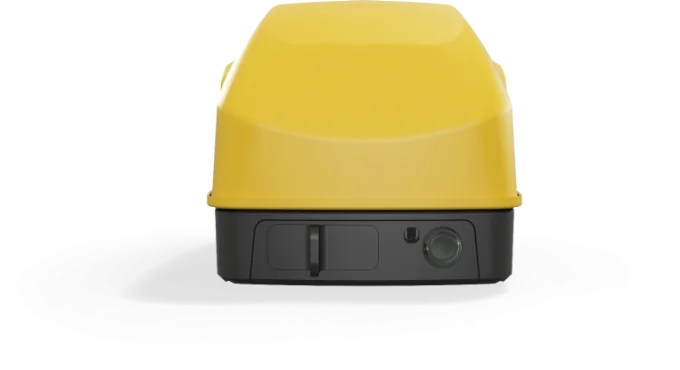

Parachute Pod™

Drone parachute size: 5.5 m²
Risers / attachment location: Internal

Attachment Bracket

Attachment bracket weight: 272 grams / 0.60 lbs
Material: Carbon fibre / aluminum
Attachment location: Top mounted

Independent Remote

Range: <2 km / <1.24 mi
Frequency: 915MHz / 868MHz

PRS-M350EX User Manual (February 2024 - V1.3)

AVSS – PRS-M350EX User Manual – Public Release – February – 2024 (1.3)

PRS-M350EX Firmware (February 2024)

Release Date 2024-02-23
Release Version 3.124.1.1 (External FTS for MOC2511 Compliance – EASA C5)
EFTS Release Version 1.1.0.0

Release Notes:

Allows for use of the External FTS (EFTS) hardware add-on, which is MOC2511 compliant

Firmware for 868MHz (Europe):
PRSM350EX-868

PRS-M350EX - EASA C5 & MOC 2511 Declaration of Conformity

AVSS – Declaration of Conformity – C5 – PRS-M350(EX) – 2024

Imagery for illustration purposes only. Specifications are subject to change without notice.
